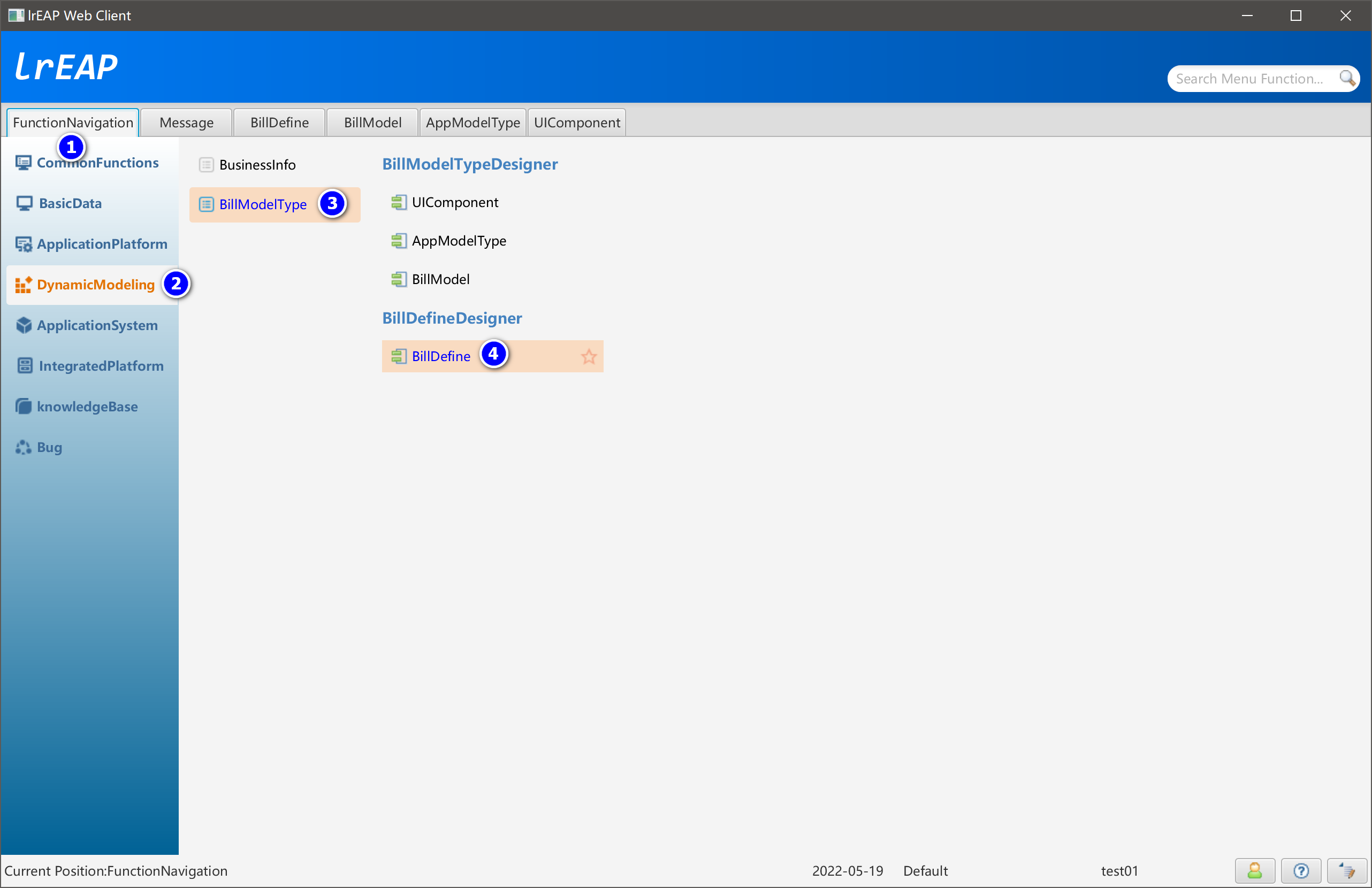

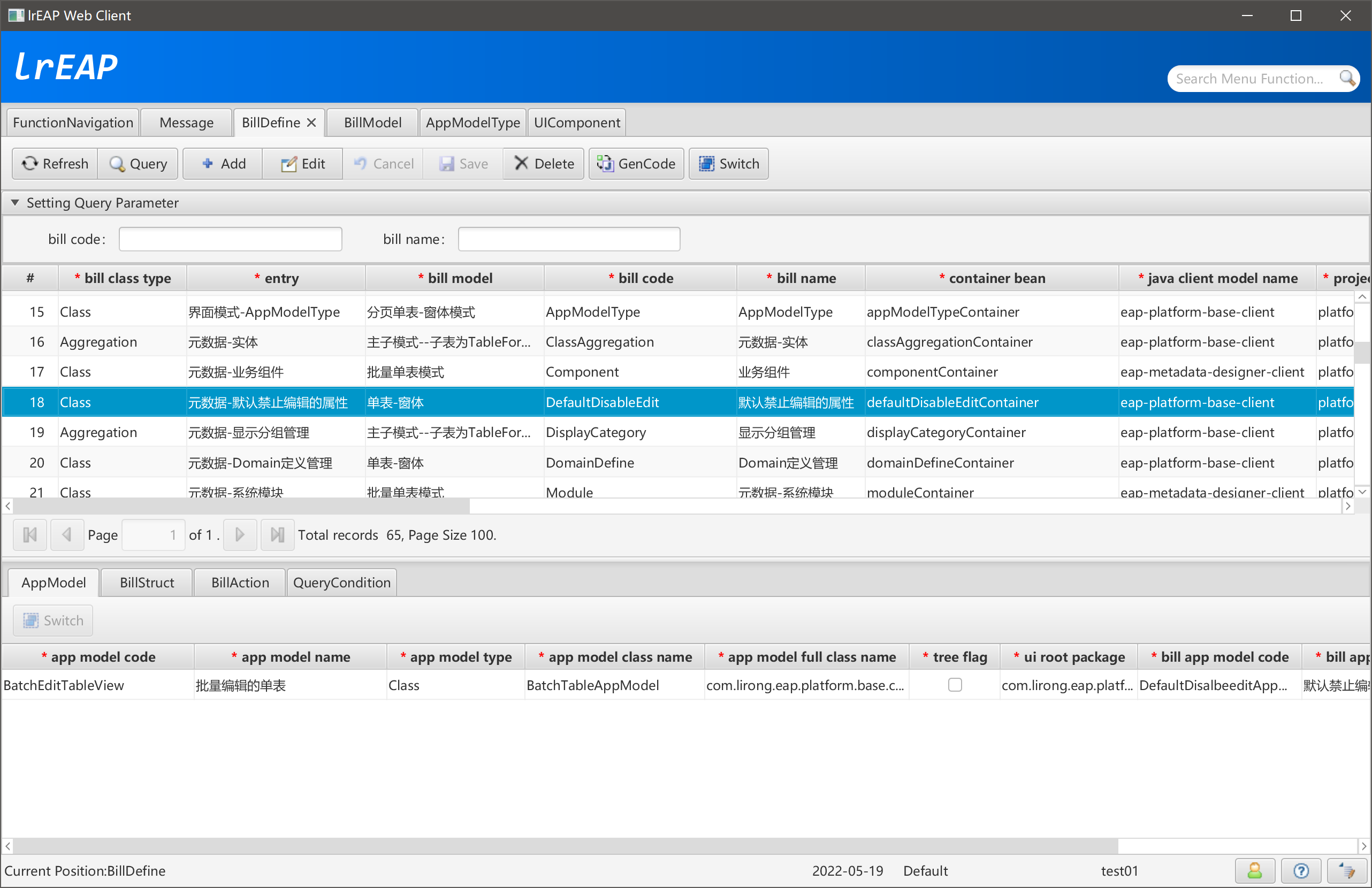

单据定义
fxEAP的界面模式，在JavaFX提供的基础组件之上，进行封装、增强、优化，针对我们在界面层面需要解决的问题，提供完整的UI模式。
常见的UI功能界面，主要有以下几个部分构成：
工具栏。提供一系列按钮，用于完成特定的操作。这些按钮，可能还与功能权限、数据权限、流程权限等相关。
业务数据展现及管理。以多种形式展现、管理业务数据。这部分是整个业务功能界面中最重要的内容。从业务数据的展现形式上看，有单表界面、主子表界面、单子多子表界面、多主多子表界面、树卡界面、树单表界面、树卡表界面、树卡单表界面、树卡多表界面等。从业务数据的管理功能上看，主要有两种形式实现业务数据的新增、修改、删除等功能。一是在Form界面中进行单条业务数据的管理。二是在Table界面中实现对单笔、多笔业务数据的管理。

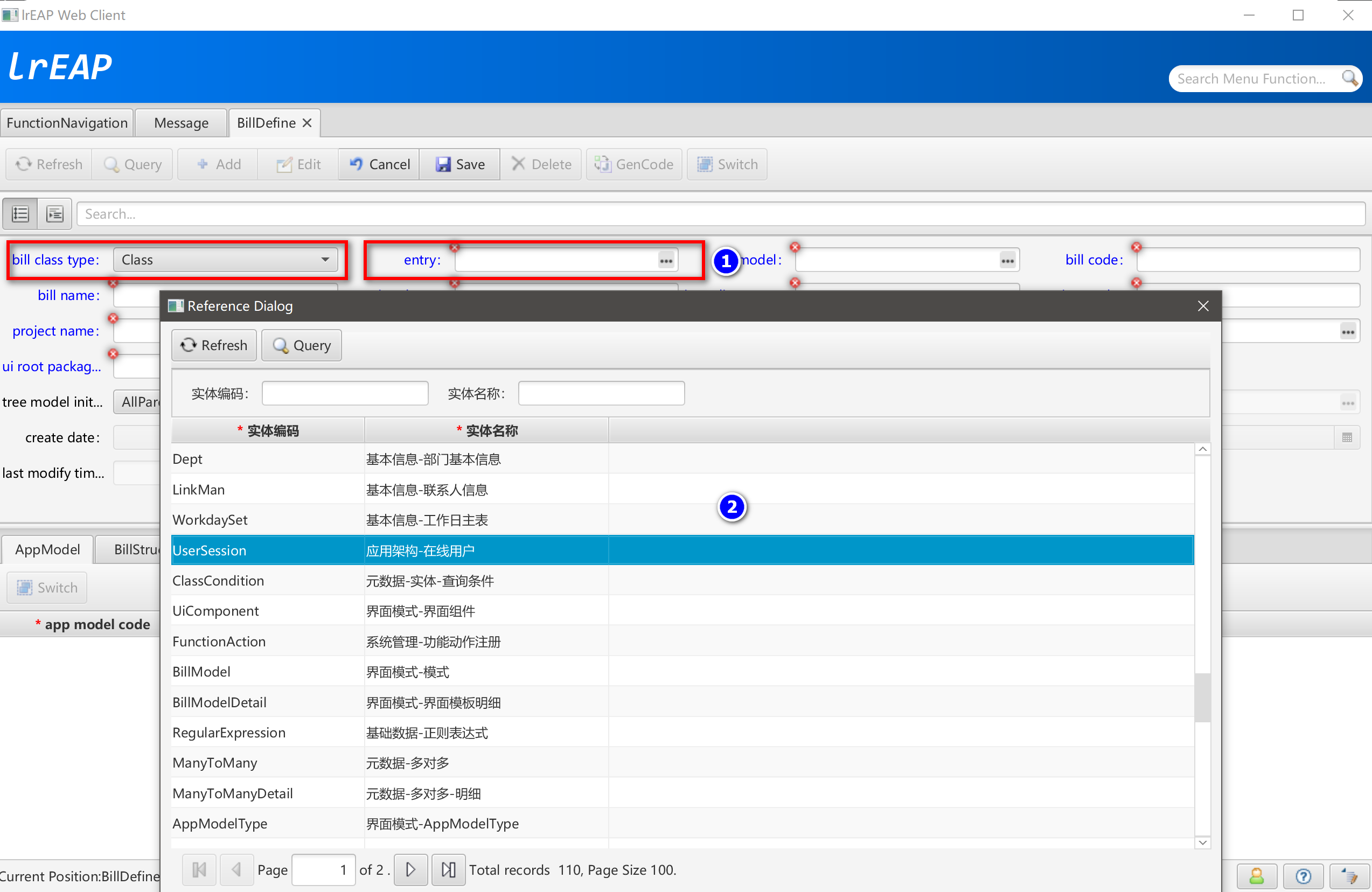

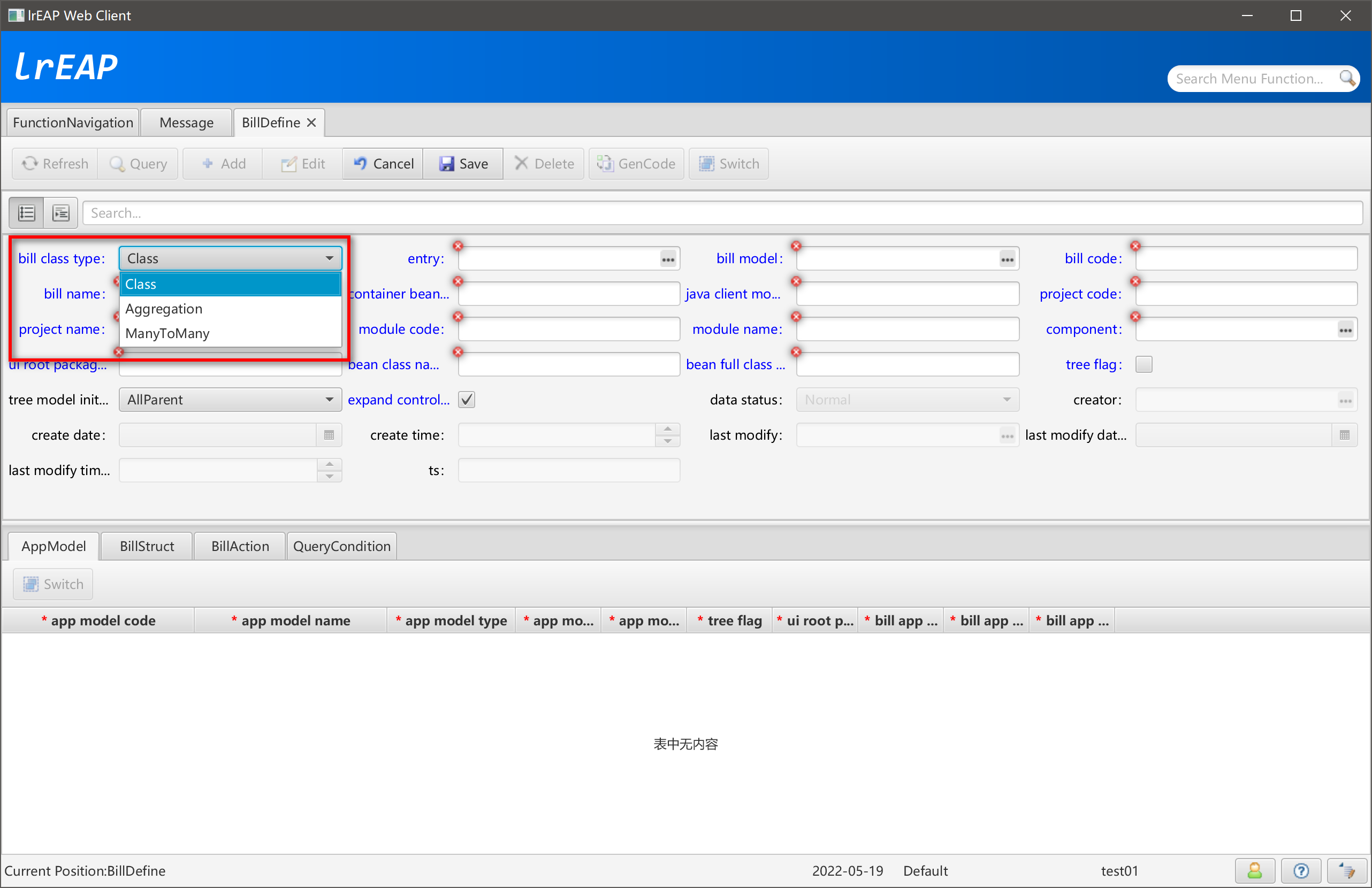

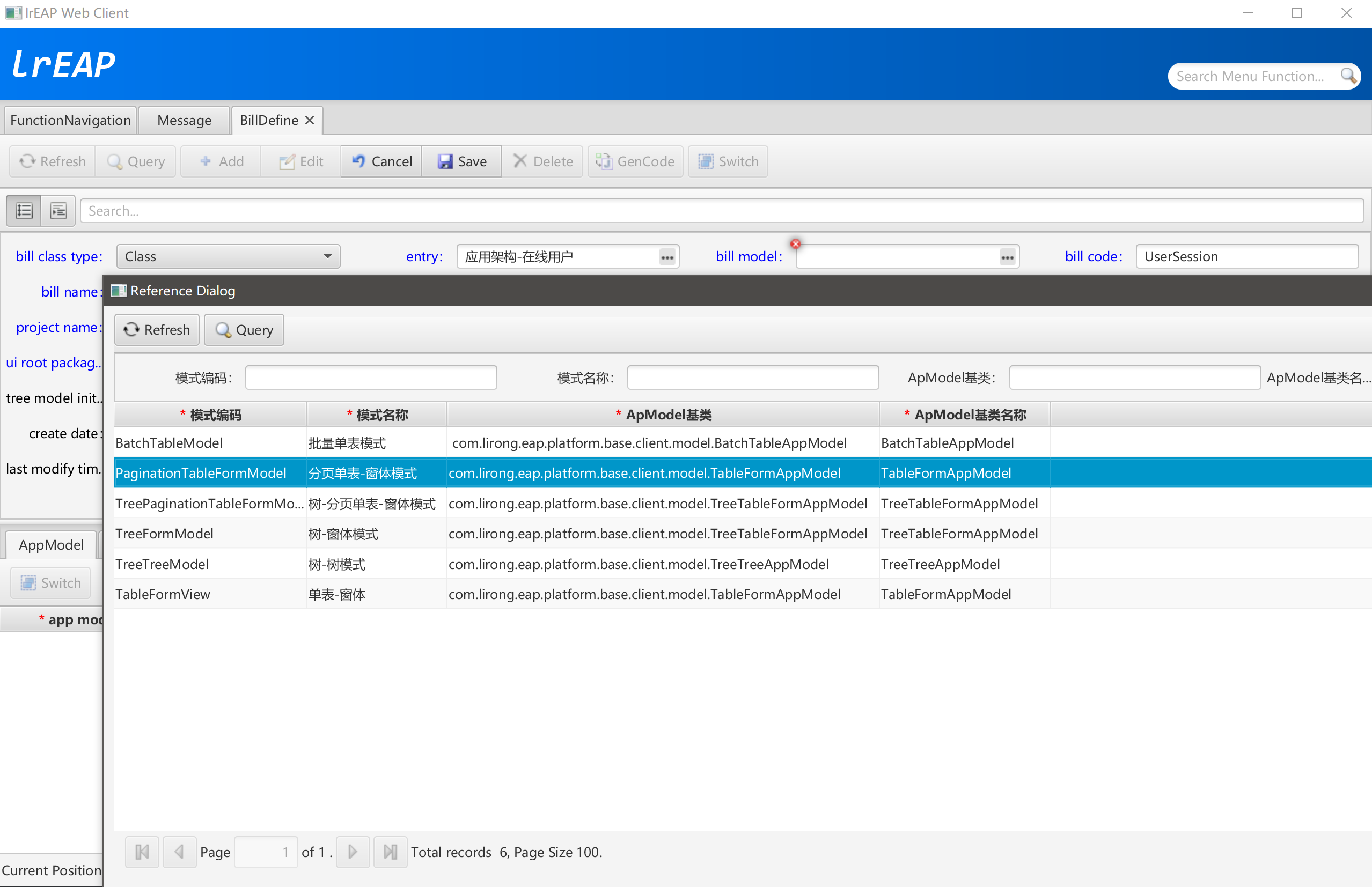

单据定义的来源数据，是由元数据设计生成单体、树形、聚合、多对多业务对象。
在单据定义的基础上，生成功能、菜单信息。
/**
* <p>Title: LiRong Java Enterprise Application Platform</p>
* <p>平台公共 - 系统管理</p>
* Description: 应用架构-在线用户 的 UIConfig类<br>
* Copyright: lrJAP.com<br>
* Company: lrJAP.com<br>
*
* @author jianjun.yu
* @version 3.0.0-SNAPSHOT
* @date 2022-05-19
* @since 1.0.0-SNAPSHOT
*/
@Configuration
@Lazy
public class UserSessionUIConfig {
// App Model
@ClientBean
@Scope(AppModelScope.APP_MODEL_SCOPE_NAME)
public UserSessionAppModel userSessionAppModel() {
return new UserSessionAppModel();
}
// Main UI
@ClientBean
public UserSessionUI userSessionContainer(
@Qualifier("userSessionAppModel") UserSessionAppModel userSessionAppModel, // $NON-NLS$
@Qualifier("userSessionToolbar") ActionGroupBox userSessionToolbar
, @Qualifier("userSessionTableFormPane") MainPaginationTableFormViewPane userSessionTableFormPane) { // $NON-NLS$
UserSessionUI userSessionUI = new UserSessionUI();
userSessionUI.setAppModel(userSessionAppModel);
userSessionUI.setToolbar(userSessionToolbar);
userSessionUI.setTableFormPane(userSessionTableFormPane);
return userSessionUI;
}
@ClientBean
public MainPaginationTableFormViewPane userSessionTableFormPane(
@Qualifier("userSessionAppModel") UserSessionAppModel userSessionAppModel, // $NON-NLS$
@Qualifier("userSessionTableViewPane") PaginationTableFormViewPane userSessionTableViewPane, // $NON-NLS$
@Qualifier("userSessionFormView") MainBillFormView userSessionFormView) { // $NON-NLS$
MainPaginationTableFormViewPane tableFormPane = new MainPaginationTableFormViewPane();
tableFormPane.setAppModel(userSessionAppModel);
tableFormPane.setTablePane(userSessionTableViewPane);
tableFormPane.setFormView(userSessionFormView);
return tableFormPane;
}
@ClientBean
public PaginationTableFormViewPane userSessionTableViewPane(
@Qualifier("userSessionAppModel") UserSessionAppModel userSessionAppModel, // $NON-NLS$
@Qualifier("userSessionQueryPane") SimpleQueryPane userSessionQueryPane, // $NON-NLS$
@Qualifier("userSessionPaginationToolbar") PaginationToolbar userSessionPaginationToolbar, // $NON-NLS$
@Qualifier("userSessionTableView") MainBillTableView userSessionTableView) { // $NON-NLS$
PaginationTableFormViewPane paginationTablePane = new PaginationTableFormViewPane();
paginationTablePane.setAppModel(userSessionAppModel);
paginationTablePane.setQueryPane(userSessionQueryPane);
paginationTablePane.setPaginationToolbar(userSessionPaginationToolbar);
paginationTablePane.setBillTableView(userSessionTableView);
return paginationTablePane;
}
@ClientBean
public SimpleQueryPane userSessionQueryPane(@Qualifier("userSessionAppModel") UserSessionAppModel userSessionAppModel) { // $NON-NLS$
SimpleQueryPane queryPane = new SimpleQueryPane();
queryPane.setAppModel(userSessionAppModel);
queryPane.getQueryCondition().addAll(Arrays.asList(
"user_account_like_both", "user_name_like_both"
));
return queryPane;
}
@ClientBean
public PaginationToolbar userSessionPaginationToolbar(@Qualifier("userSessionAppModel") UserSessionAppModel userSessionAppModel) { // $NON-NLS$
PaginationToolbar toolbar = new PaginationToolbar();
toolbar.setAppModel(userSessionAppModel);
return toolbar;
}
@ClientBean
public MainBillTableView userSessionTableView(@Qualifier("userSessionAppModel") UserSessionAppModel userSessionAppModel) { // $NON-NLS$
MainBillTableView tableView = new MainBillTableView();
tableView.setAppModel(userSessionAppModel);
tableView.setClassCode("UserSession"); // $NON-NLS$
return tableView;
}
@ClientBean
public MainBillFormView userSessionFormView(@Qualifier("userSessionAppModel") UserSessionAppModel userSessionAppModel) { // $NON-NLS$
MainBillFormView formView = new MainBillFormView();
formView.setAppModel(userSessionAppModel);
formView.setClassCode("UserSession"); // $NON-NLS$
return formView;
}
@ClientBean
public ActionGroupBox userSessionToolbar(
@Qualifier("userSessionRefreshAction") RefreshAction userSessionRefreshAction,
@Qualifier("userSessionQueryAction") QueryAction userSessionQueryAction,
@Qualifier("userSessionAddAction") AddAction userSessionAddAction,
@Qualifier("userSessionEditAction") EditAction userSessionEditAction,
@Qualifier("userSessionSaveAction") SaveAction userSessionSaveAction,
@Qualifier("userSessionCancelAction") CancelAction userSessionCancelAction,
@Qualifier("userSessionDeleteAction") DeleteAction userSessionDeleteAction,
@Qualifier("userSessionSwitchAction") SwitchAction userSessionSwitchAction) {
ActionGroupBox toolbar = new ActionGroupBox();
toolbar.setActionGroups(Arrays.asList(
new HActionGroup(Arrays.asList(
userSessionRefreshAction,
userSessionQueryAction
)),
new HActionGroup(Arrays.asList(
userSessionAddAction,
userSessionEditAction,
userSessionSaveAction,
userSessionCancelAction,
userSessionDeleteAction
)),
userSessionSwitchAction
));
return toolbar;
}
@ClientBean
public RefreshAction userSessionRefreshAction(@Qualifier("userSessionAppModel") UserSessionAppModel userSessionAppModel) {
return new RefreshAction(userSessionAppModel);
}
@ClientBean
public QueryAction userSessionQueryAction(@Qualifier("userSessionAppModel") UserSessionAppModel userSessionAppModel) {
return new QueryAction(userSessionAppModel);
}
@ClientBean
public AddAction userSessionAddAction(@Qualifier("userSessionAppModel") UserSessionAppModel userSessionAppModel) {
return new AddAction(userSessionAppModel);
}
@ClientBean
public EditAction userSessionEditAction(@Qualifier("userSessionAppModel") UserSessionAppModel userSessionAppModel) {
return new EditAction(userSessionAppModel);
}
@ClientBean
public SaveAction userSessionSaveAction(@Qualifier("userSessionAppModel") UserSessionAppModel userSessionAppModel) {
return new SaveAction(userSessionAppModel);
}
@ClientBean
public CancelAction userSessionCancelAction(@Qualifier("userSessionAppModel") UserSessionAppModel userSessionAppModel) {
return new CancelAction(userSessionAppModel);
}
@ClientBean
public DeleteAction userSessionDeleteAction(@Qualifier("userSessionAppModel") UserSessionAppModel userSessionAppModel) {
return new DeleteAction(userSessionAppModel);
}
@ClientBean
public SwitchAction userSessionSwitchAction(@Qualifier("userSessionAppModel") UserSessionAppModel userSessionAppModel) {
return new SwitchAction(userSessionAppModel);
}
/******************************************************************************************************************/
/********************************************** fxEAP Code Generator **********************************************/
/******************************************************************************************************************/
}
/**
* <p>Title: LiRong Java Enterprise Application Platform</p>
* <p>平台公共 - 系统管理</p>
* Description: 应用架构-在线用户 的 AppModel类<br>
* Copyright: lrJAP.com<br>
* Company: lrJAP.com<br>
*
* @author jianjun.yu
* @version 3.0.0-SNAPSHOT
* @date 2022-05-19
* @since 1.0.0-SNAPSHOT
*/
public class UserSessionAppModel extends TableFormAppModel {
@Autowired
private IUserSession userSessionService;
public UserSessionAppModel() {
super();
setMetadataClassCode("UserSession"); // $NON-NLS$
}
@Override
public void initQueryParamVO() {
setQueryParamVO(new UserSessionFXVO(new UserSessionVO()));
}
@Override
public IUserSession getBusinessModelService() {
return this.userSessionService;
}
@Override
public void handleEvent(AppModelEvent event) {
}
@Override
public void prepareSelectedDataAfterSet() {
}
@Override
public void customCancelEdit() {
}
@Override
public UserSessionFXVO getSelectedData() {
return (UserSessionFXVO) super.getSelectedData();
}
/******************************************************************************************************************/
/********************************************** fxEAP Code Generator **********************************************/
/******************************************************************************************************************/
}
/**
* <p>Title: LiRong Java Enterprise Application Platform</p>
* <p>平台公共 - 系统管理</p>
* Description: 应用架构-在线用户 的 UI类<br>
* Copyright: lrJAP.com<br>
* Company: lrJAP.com<br>
*
* @author jianjun.yu
* @version 3.0.0-SNAPSHOT
* @date 2022-05-19
* @since 1.0.0-SNAPSHOT
*/
public class UserSessionUI extends LRFunctionNodeBorderPane {
private UserSessionAppModel appModel;
private ActionGroupBox toolbar;
private MainPaginationTableFormViewPane tableFormPane;
@Override
public void afterPropertiesSet() throws Exception {
initUI();
}
private void initUI() {
setTop(getToolbar());
setCenter(getTableFormPane());
}
@Override
public void handleEvent(AppModelEvent event) {
}
public UserSessionAppModel getAppModel() {
return appModel;
}
public void setAppModel(UserSessionAppModel appModel) {
this.appModel = appModel;
this.appModel.addAppModelEventListener(this);
}
public ActionGroupBox getToolbar() {
return toolbar;
}
public void setToolbar(ActionGroupBox toolbar) {
this.toolbar = toolbar;
}
public MainPaginationTableFormViewPane getTableFormPane() {
return tableFormPane;
}
public void setTableFormPane(MainPaginationTableFormViewPane tableFormPane) {
this.tableFormPane = tableFormPane;
}
@Override
public Map<KeyCombination, Action> getAllCustomActionKeyCombination() {
return toolbar == null ? null : toolbar.getAllCustomActionKeyCombination();
}
/******************************************************************************************************************/
/********************************************** fxEAP Code Generator **********************************************/
/******************************************************************************************************************/
}

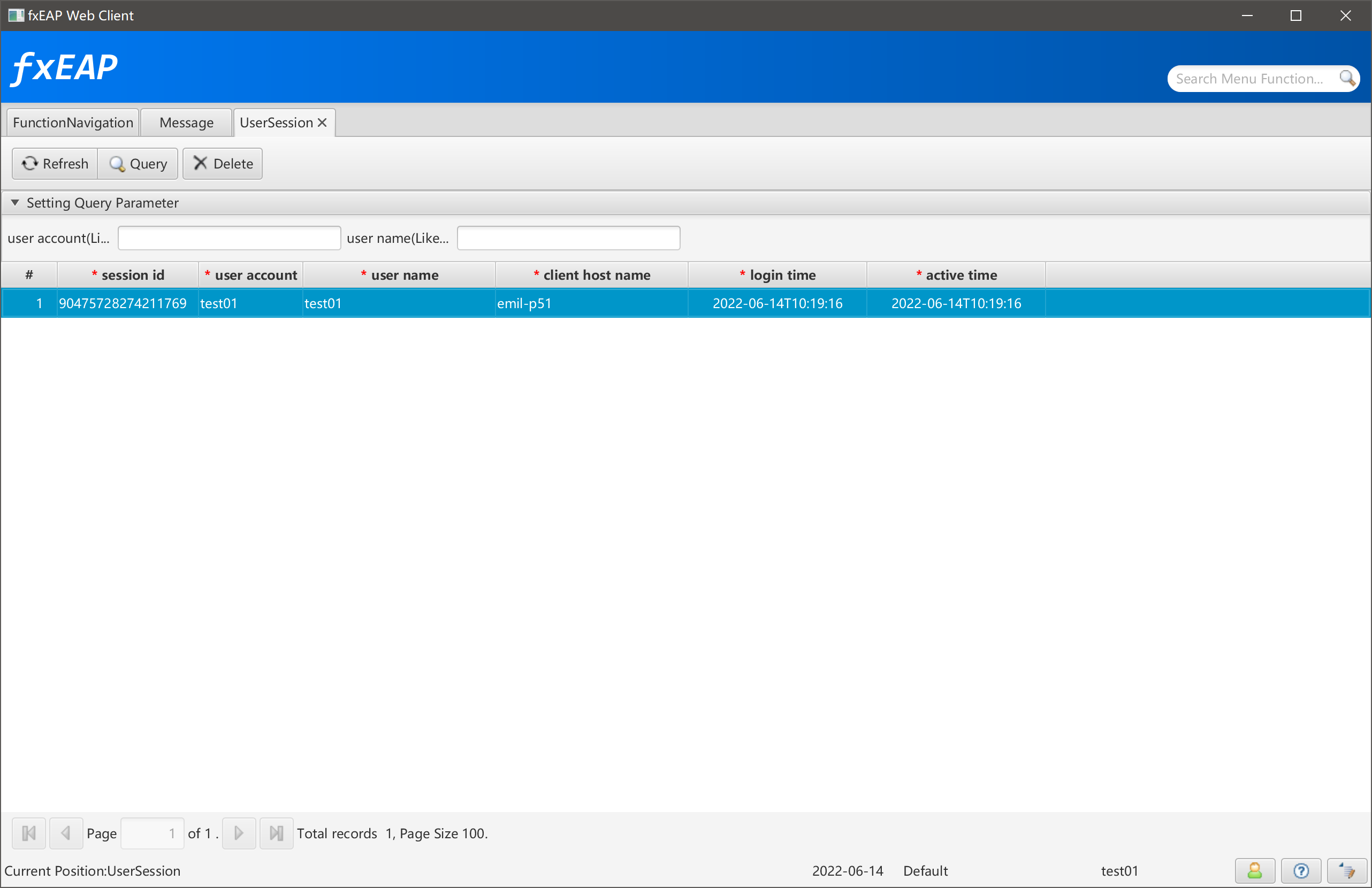

由于本界面不需要编辑功能，所以在UserSessionUIConfig中删除了与编辑相关的Action，只保留了终止（删除）用户session的功能。
